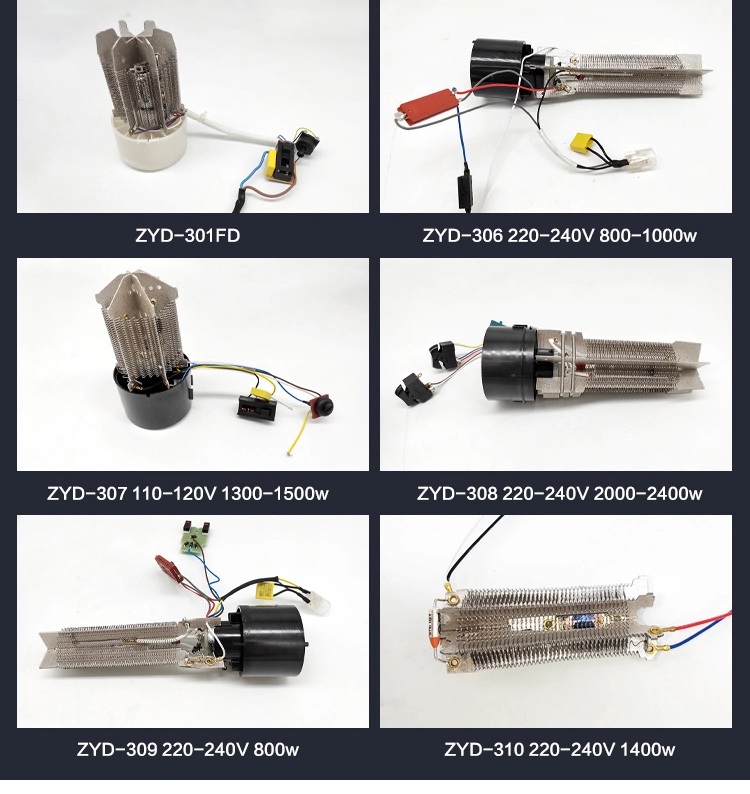

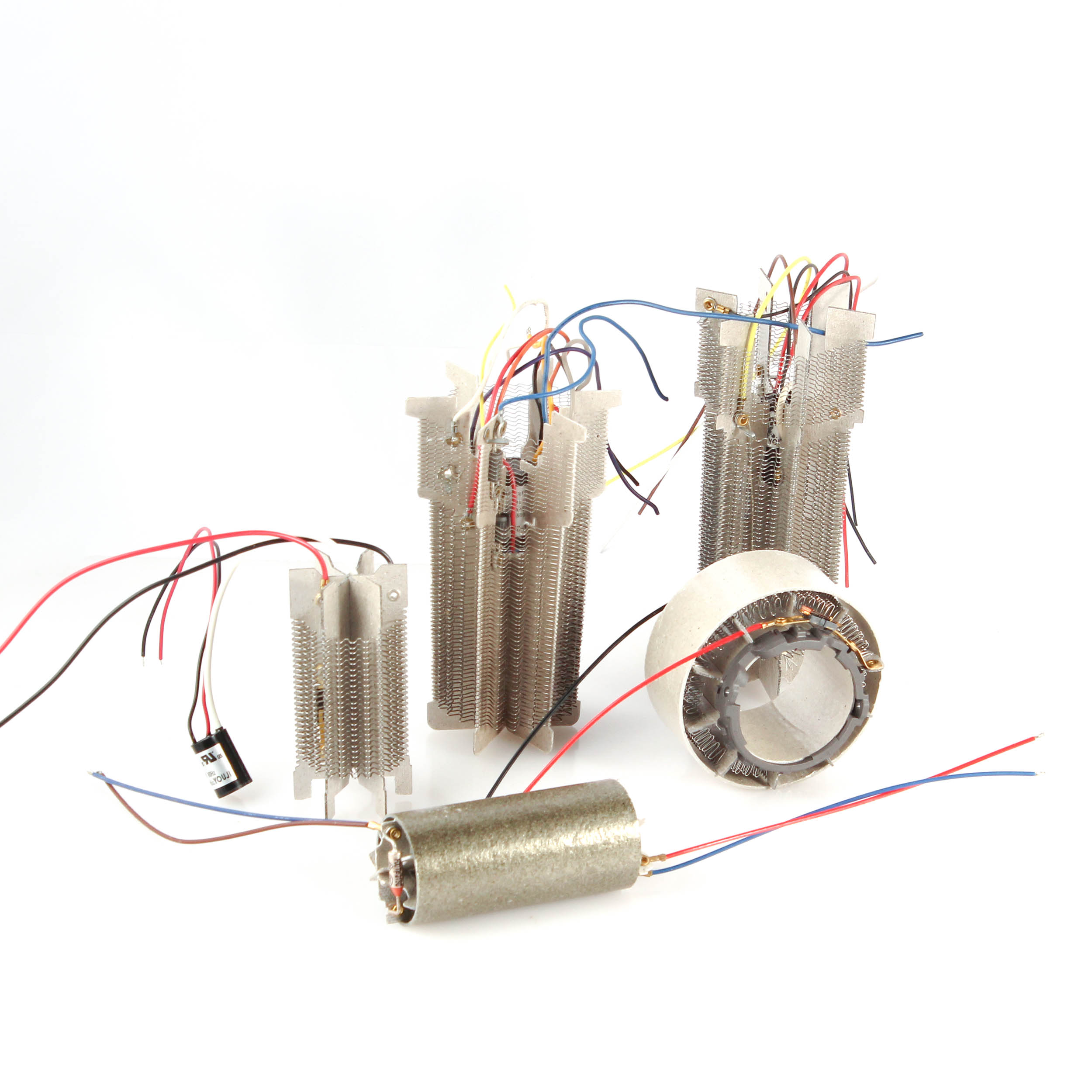

Mica Dryer Heater
Mica heating element parts are widely used in household appliances, hair dryer, wool dryer, hand dryer, fan heater, convection heater, toaster, office equipment, industrial machinery and other electric heating products.
Technique parameter:
Name | Mica heating element for dryer |
Voltage | from 3V-380V, or customized according to customer requirements |
Heating material | OCr25Al5A,Ni80Cr20 |
Insulation material | Grade A mica plate |
Temperature | <200 ℃ |
Power | in principle, according to customer requirements, but not more than the carrying capacity of mica plate |
Applicable to | electric fireplace, dishwasher, hair dryer, small appliances,etc.! |

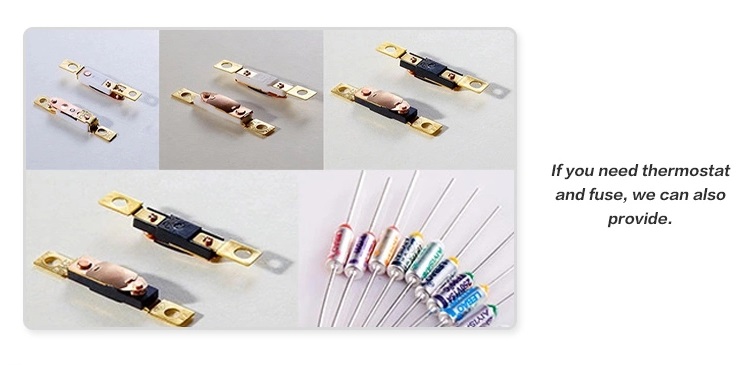

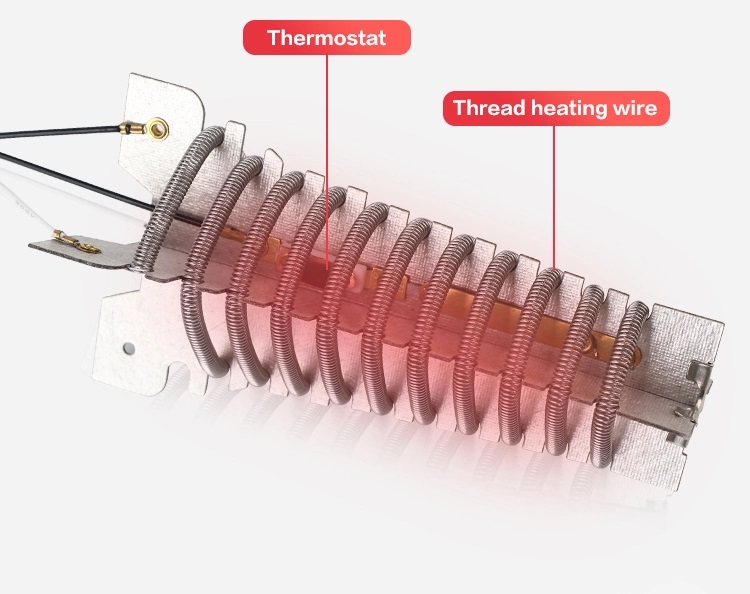

Different types of thermostats or thermal cut off can be in built as request.
Main features
1. Excellent heat resistance, even up to 1000 ℃.
2. Excellent electrical insulation.
3. Flexible coiling.
4. Environmental protection and non-toxic.
Product information
1. Insulating material: Muscovite / phlogopite mica board
2. Heating wire: ni80cr20, ocr25al5a
3. Voltage range / rated power: depending on the application.
5. Working temperature: depends on rating, motor, heater structure, etc.
6. Size: customer requirements.
7. Protection: customer requirements.
