Stainless Steel Immersion Heater
Immersion heater
The Stainless Steel Immersion Heater by JAYE HEATER is designed to deliver efficient heating solutions for industrial and commercial applications. Crafted with high-quality 304/316 stainless steel, it offers excellent corrosion resistance, extended durability, and reliable thermal performance. Whether for liquid heating or process temperature control, our heater ensures consistent and dependable results.
Quantity:
Stainless Steel Immersion Heater Product Description：
The Stainless Steel Immersion Heater by JAYE HEATER is designed to deliver efficient heating solutions for industrial and commercial applications. Crafted with high-quality 304/316 stainless steel, it offers excellent corrosion resistance, extended durability, and reliable thermal performance. Whether for liquid heating or process temperature control, our heater ensures consistent and dependable results.
5 major selling points
High Heat Efficiency: Advanced heating element technology ensures fast heat-up and efficient energy conversion, reducing energy costs.
Corrosion-Resistant Design: Made with premium stainless steel, it is suitable for various liquids, including water, oil, and mild acidic or alkaline solutions.
Customizable Options: Supports customization in power, dimensions, and connection types to meet your specific application requirements.
Overheat Protection: Built-in multiple safety features, such as thermostats and overheat cutoffs, for worry-free operation.
Easy Installation and Maintenance: Compact design for quick installation and low maintenance, lowering overall operational costs.
Specifications：
| Specification | Details |
|---|---|
| Material | 304/316 Stainless Steel |
| Voltage Options | 220V / 380V / Custom |
| Power Range | 1kW - 30kW |

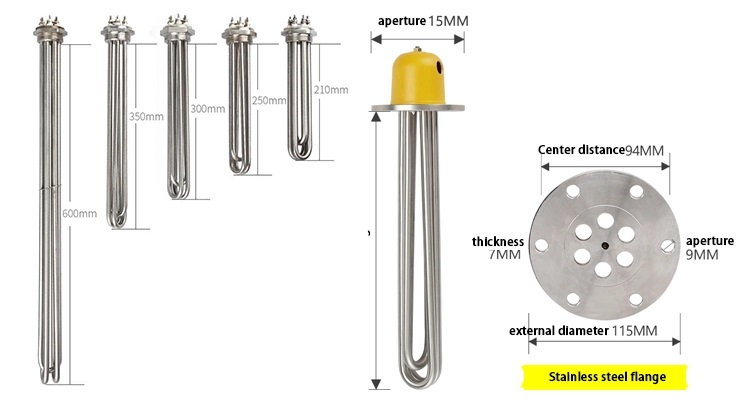

| Heater Diameter | 6mm / 8mm / 10mm / Custom |
| Length | 200mm - 2000mm (Customizable) |
| Mounting Type | Threaded or Flange |
| Working Temperature | Up to 300°C |
| Application | Water, Oil, Mild Chemicals |
Related pictures:
Application area:
- Industrial Heating: Liquid heating in chemical processing, auxiliary heating for boilers
- Food Processing: Fryers, milk heating, and liquid temperature control
- Agriculture and Environmental Use: Wastewater treatment systems, greenhouse heating

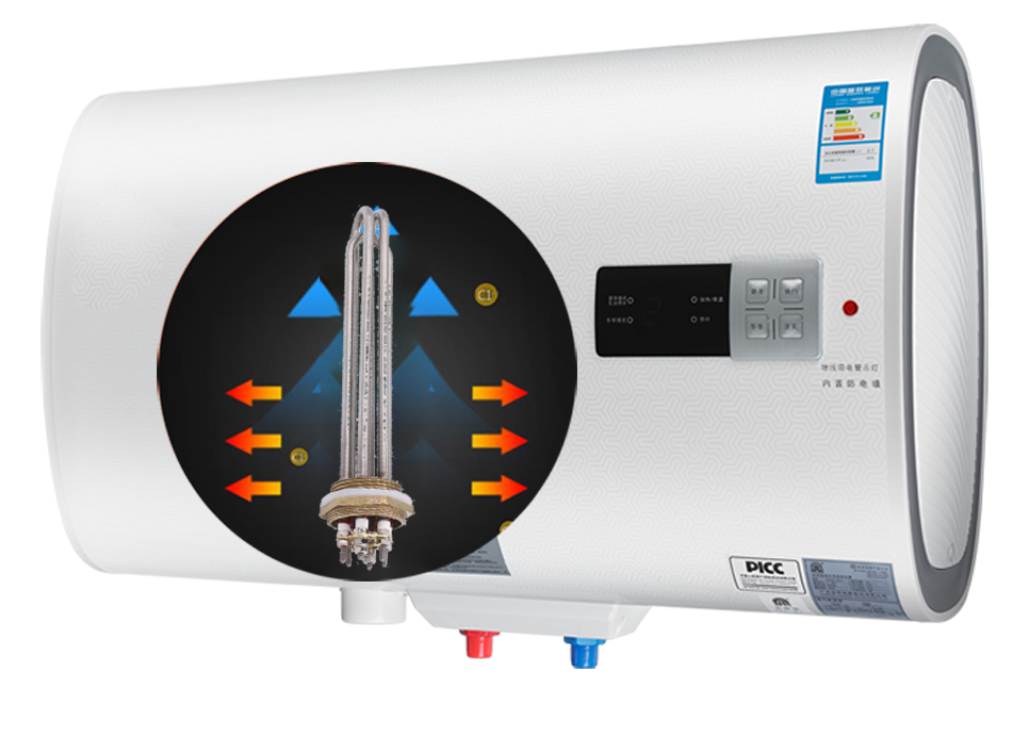

- Commercial Use: Water heaters, storage tanks, and rapid heating of other liquid containers
Installation steps:
- Inspect the Equipment: Ensure the heater and accessories are intact and free from damage.
- Prepare the Mounting Hole: Drill a hole in the liquid container according to the heater dimensions, ensuring a snug fit.
- Secure the Heater: Insert the heater into the container, tighten it with the threaded interface to ensure a proper seal.
- Connect the Power Supply: Follow the wiring diagram in the manual to safely connect the power, ensuring proper grounding.
- Test the Operation: Switch on the power and test the heater to ensure uniform heating and normal performance.
