Convection Oven Heating Elements
and square designs—ensure even heat distribution for superior cooking results. Crafted from premium stainless steel and nichrome, they offer durability and
efficiency for both residential and commercial ovens. Enjoy faster cooking times, enhanced food texture, and easy maintenance with our high-quality heating
elements.
Elevate Your Cooking Experience with Precision Heating
At Jaye Heater Technology, we understand the importance of consistent and efficient heat for achieving culinary perfection. Our Convection Oven Heating Elements are designed to enhance your cooking performance with superior heat distribution and durability. Whether you're a home chef or a commercial kitchen professional, our heating elements offer the reliability and efficiency you need.
Why Choose Jaye Heater Technology’s Convection Oven Heating Elements?
1. Advanced Heating Design

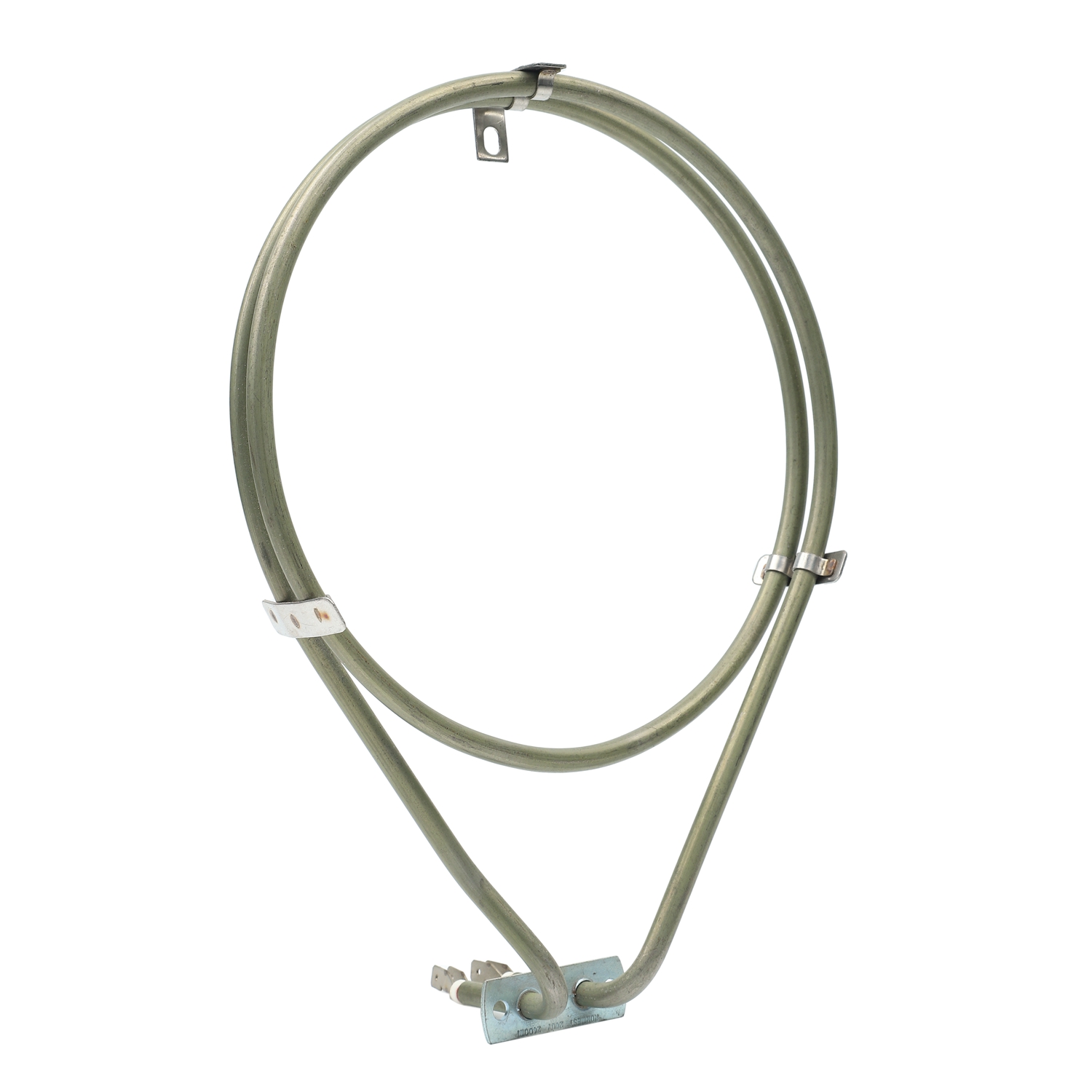

Our convection oven heating elements are engineered with cutting-edge technology to ensure even heat distribution throughout the oven. Available in both circular and square types, our elements cater to various cooking needs:
- Circular Elements: Ideal for broiling and roasting, providing intense, even heat from the top of the oven. also called broil elements
- Square Elements: Perfect for baking, ensuring consistent and thorough heat from the bottom of the oven. also called bake elements
2. Premium Quality Materials
We use high-grade stainless steel and nichrome alloys to manufacture our heating elements. These materials offer exceptional heat resistance, durability, and corrosion resistance, ensuring long-lasting performance even under the most demanding conditions.
3. Enhanced Cooking Efficiency
Experience faster cooking times and improved results with our convection oven heating elements. The advanced design facilitates optimal air circulation, reducing cooking times and enhancing the texture and flavor of your dishes.
4. Easy Installation and Maintenance
Our convection oven heating elements are designed for easy installation and maintenance. With straightforward installation procedures and minimal upkeep requirements, you can focus more on cooking and less on repairs.
5. Versatile Applications
Whether you’re baking, roasting, or broiling, our convection oven heating elements are versatile enough to handle various cooking tasks with precision. Perfect for both residential and commercial ovens, they adapt to different cooking styles and requirements.
Specifications of Convection Heating Elements
Specification | Detail | Remark |
Product Name | Oven electrical heating element | |
Size | Product diamater: 19.1cm Height:1.9cm or customized | |
Insulation resistance | ≥50MΩ |
|
Leak current | ≤0.05mA(cold condition) ≤0.75 mA (hot condition) | |
Tube Material | SUS304 /840/310S | Sheath material can be customized |
Voltage/wattage | 220V-240V/1300W | Voltage/Wattage can be customized as required,and Wattage tolerance(our best):+4%-8% |
Tube Diameter | 6.5mm,6.6mm,8mm | Tube diameter can be changed to 6.5mm,6.6mm,8mm or others as requested |
HeatingWire Spec. | 0.3,0.32,0.4,0.48… | Heating wire specification and material can be customized according to the requirement |
Thermal fuse | Iron chromium | Material of thermal fuse can be nickel chromium wire if requested |
Feature | 1. Superior internal electrical insulation and heat conductivity 2. Durable and low cost 3. Easy to replace thus eliminating long shut-down periods 4. Configurable to virtually any shape 5. Excellent corrosion resistance 6. Easy installation | |
Discover the Difference with Jaye Heater Technology
Investing in high-quality convection oven heating elements means investing in superior cooking results. At Jaye Heater Technology, we are committed to delivering products that meet the highest standards of performance and reliability. Our heating elements are crafted to meet the diverse needs of our customers, ensuring that you get the best results every time you cook.
Get in Touch
Ready to upgrade your cooking equipment with premium convection oven heating elements? Contact us today to learn more about our products, request a quote, or place an order. Let Jaye Heater Technology be your trusted partner in achieving culinary excellence.
