Hot Water Heating Elements
Water Heating Elements
Jaye makes custom and standard water heating elements for home appliance, the pipe materials includes stainless steel elements and cooper heating elements, both of them are popular used for the electric water heating appliances, like kettle, shower, water tap, Storage tank heating, etc. Jaye makes the water heating elements with custom Various shape and sizes as per our customer’s specific requirements, and all are proceeded under high quality control system. If you have any requirements on this heating elements, just contact with us.
Product Description
Product Name | Heating element For Water Heater |
Tube Material | T2 Copper / SUS304 |
Power | 800-4500W +5%, -10% |
Voltage | 110-240V |
Hi-pot test | 1800V/S min cold condition |
Insulation | 500MΩ |
Flange size | 1 1/4" |
Flange material | Brass |
Applications:
1. Electric storage water heater
2. Heat pump water heater
3. Solar Water Heater

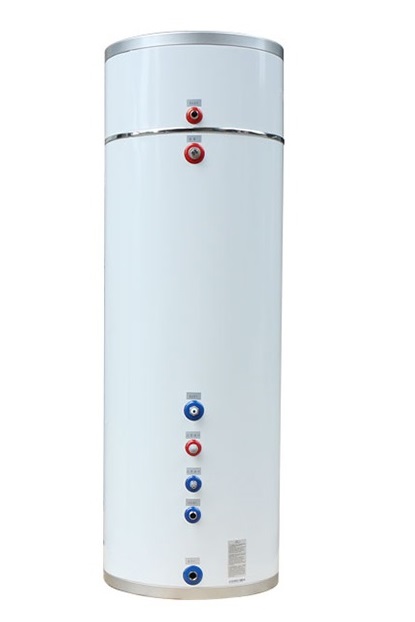

Location of heating element of electric water heater
In a standard electric water heater, you usually find two elements. These elements are located in the tank. One can be found near the bottom and the other in the middle. The bottom hot water tank element is responsible for most of the work. This is because cold water enters the tank from the bottom, so the element is responsible for most of the water heating.

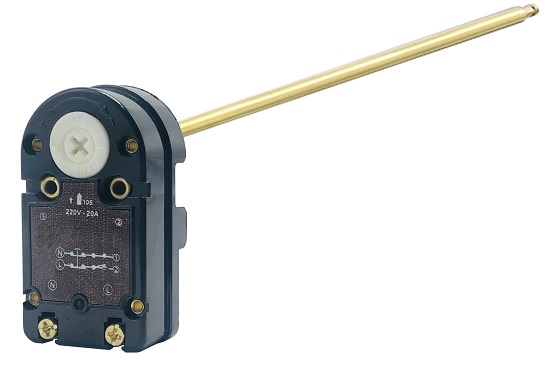

How to Control the temperature:
Each element is controlled by a separate thermostat within the heating unit. These thermostats are switches that measure the heat of the water in the tank and make sure the water is at the right temperature.
