How Do Thick Film Heaters Work

author: Eric

2025-02-08

A Thick Film Heater is an advanced heating element that utilizes a printed resistive circuit on a substrate, such as stainless steel or ceramic. This technology enables fast heating, high efficiency, and precise temperature control, making it ideal for applications requiring compact and high-performance heating solutions.

Working Principle of Thick Film Heaters

Thick film heater function through the direct conversion of electrical energy into heat. Here’s a step-by-step breakdown:

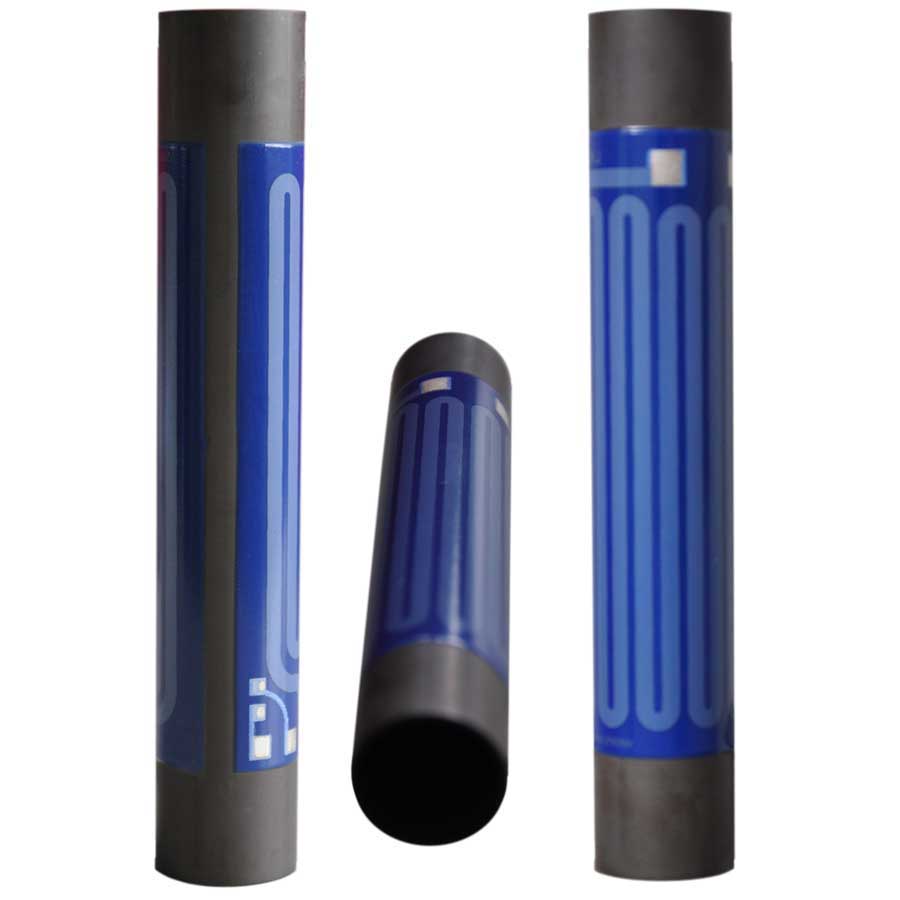

Printed Resistive Layers – A resistive heating circuit is screen-printed onto a stainless steel or ceramic base.

Electrical Activation – When current flows through the printed resistive pattern, heat is generated through Joule heating.

Efficient Heat Transfer – The heat is evenly distributed across the surface due to the ultra-thin structure, reducing thermal lag and improving energy efficiency.

Temperature Control – The heater can be paired with sensors for precise temperature regulation, making it suitable for sensitive applications.

Key Advantages of Thick Film Heaters

Fast Heating & High Thermal Efficiency – Thick film heaters heat up rapidly, improving energy efficiency.

Compact & Space-Saving Design – Their ultra-thin profile allows integration into small or confined spaces.

Uniform Heat Distribution – The printed circuit design ensures even heating, minimizing hotspots.

Customizable for Various Applications – They can be tailored to meet specific wattage, voltage, and shape requirements.

Durable & Long-Lasting – With proper quality control, thick film heaters offer excellent reliability over time.

Applications of Thick Film Heating Element

Thick film heaters are widely used in:

Medical Devices (e.g., blood analyzers, sterilization equipment)

Automotive Industry (e.g., battery warmers, defoggers)

Household Appliances (e.g., coffee makers, water heaters)

Industrial Equipment (e.g., fluid heating, sensors)

Why Choose JAYE HEATER as Your Thick Film Heater Manufacturer?

Technical Advantages of JAYE HEATER

Advanced Printing Technology – JAYE HEATER uses high-precision screen printing to ensure uniform resistive patterns.

Custom Design Capabilities – We offer fully customizable thick film heating elements to fit specific applications.

High Watt-Density Performance – Our heaters deliver high power output while maintaining energy efficiency.

Quality Control Excellence

Strict Material Selection – Only high-quality substrates and resistive pastes are used to enhance performance.

Comprehensive Testing – Every heater undergoes thermal cycle testing, resistance accuracy checks, and durability assessments.

ISO & Industry Standards Compliance – We meet international safety and quality regulations for reliable performance.

Conclusion

Thick film heaters are a cutting-edge solution for fast, efficient, and compact heating needs. By leveraging JAYE HEATER’s technical expertise and quality assurance, businesses can access high-performance thick film heating elements for various applications.

If you’re looking for a trusted thick film heater manufacturer, JAYE HEATER provides customized solutions, high efficiency, and strict quality control to meet your specific heating requirements.
