Preparation Before Installation

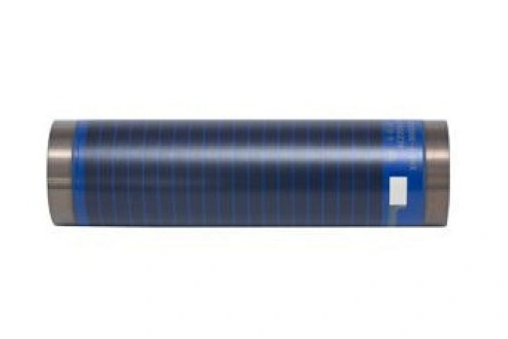

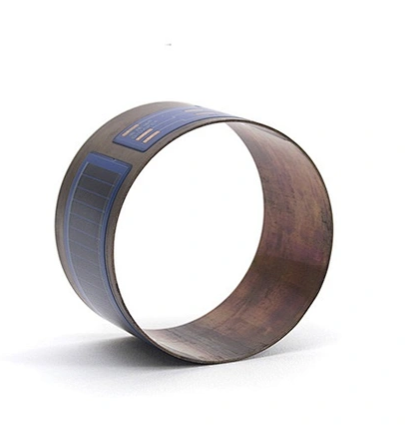

Choose the Right Thick Film Heater Tube
When selecting a thick film heater tube, it is important to choose one that matches the specifications and heating requirements of the printed circuit board. Ensure that the power, size, and material characteristics of the heater tube are appropriate for the intended application.

Required Tools and Materials
Installing a thick film heater tube requires basic tools such as screwdrivers and pliers. Additionally, prepare installation materials like thermal paste and adhesive to ensure good contact between the heater tube and the PCB.

Installation Steps

Step 1: Disconnect Power
Before installation, ensure that the power to the PCB is disconnected to guarantee safety. This is a critical step to protect both the user and the equipment.

Step 2: Clean the PCB Surface
Use appropriate cleaning agents to clean the contact surfaces of the PCB and the thick film heater tube to ensure good thermal conduction. The cleanliness of the surfaces directly impacts the performance of the heater.

Step 3: Apply Thermal Paste
Evenly apply thermal paste on the contact surface of the thick film heater tube to enhance thermal efficiency. This will facilitate faster heat transfer and ensure a stable operating temperature.

Step 4: Secure the Heater Tube
Align the thick film heater tube with the designated position and secure it according to the product manual's instructions. Ensure that the heater tube has good contact with the PCB and that there are no gaps to prevent heat loss.

Post-Installation Checks

Electrical Connection Check
Ensure that all electrical connections are secure to avoid short circuits or poor contact. Regularly check connection points to prevent potential failures.

Function Testing
Reconnect the power and perform functional testing to ensure that the thick film heater tube is operating correctly. Monitor temperature changes to ensure that the heater's temperature control system is functioning properly.

Safety and Maintenance Recommendations

Safety Operating Procedures
Adhere to relevant safety standards and operating procedures to ensure safety during installation and use.

Regular Maintenance and Inspection
Regularly check the working status of the thick film heater tube to ensure sustained heating performance. Timely maintenance can extend the lifespan of the heater.

Applications of Thick Film Heaters

Thick film heater tubes have a wide range of applications in various fields, including:

Conclusion

In summary, correctly installing thick film heater tubes not only improves the heating efficiency of printed circuit boards but also enhances the safety and stability of the equipment. Choosing the right thick film heater tube and following the installation steps will help achieve optimal operational performance. JAYE HEATER is dedicated to providing high-quality heating solutions to meet the needs of various industrial and commercial
